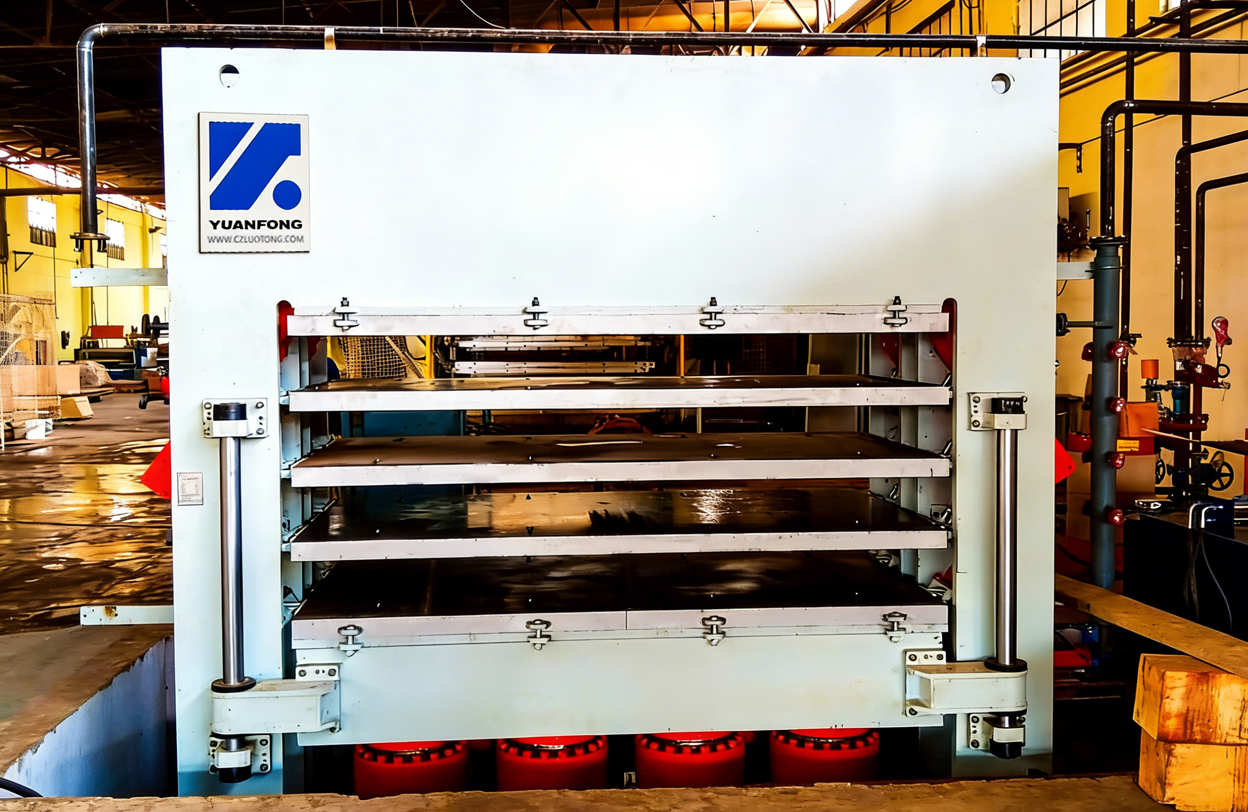

The multi-daylight molded door press is mainly used for 3D molding of softened medium-density fiberboard (MDF) or high-density fiberboard (HDF), and is suitable for pressing doors, windows, and similar products.

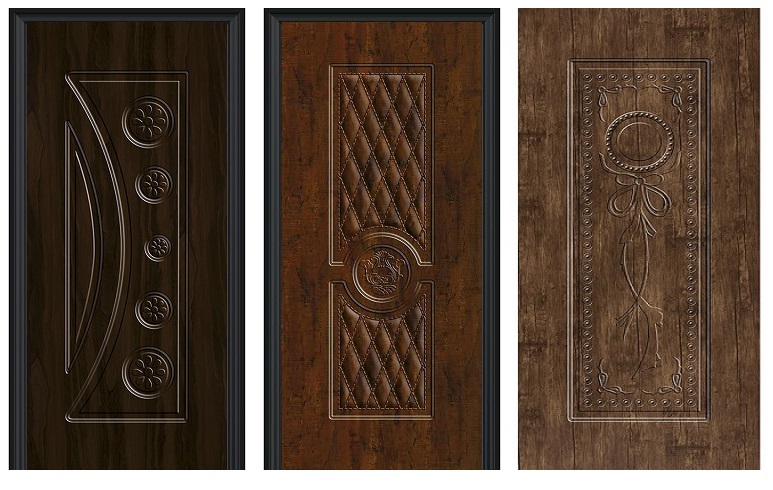

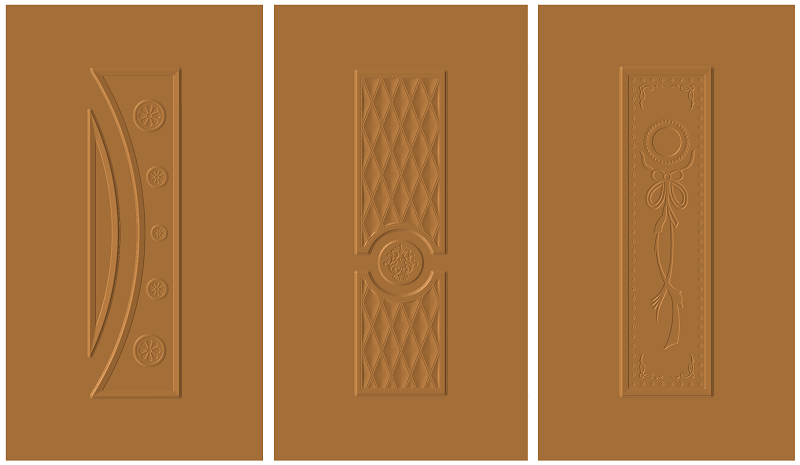

By using molds with different designs, a wide variety of door skin patterns can be produced to meet diverse customer production requirements.
| Model | Total Pressing Force (kN) | Plunger Cylinder Diameter (mm) | Number of Plunger Cylinders (pcs) | Pressing Area Size (ft) | Number of Daylights (Layers) |
| YXDM-900 | 9000 | Ф 250 | 8 | 3′ × 7′ / 4′ × 8′ or customized as required | 1-5 |
| YXDM-1200 | 12000 | Ф 320 | 8 | ||
| YXDM-1600 | 16000 | Ф 320 | 8 |
1. Frame Structure
- Thick frame constructed from high-strength steel
- Steel plates made of solid, high-hardness steel
- Equipped with guide columns to ensure improved flatness during the pressing process
2. Hydraulic Cylinders
- Press cylinders are made from special thick-wall seamless steel tubes
- Welding is performed by robotic systems to precisely control all welding parameters
- CNC machining ensures minimal operating tolerances, extending cylinder service life
3. Pressure Speed Control
- Pressure speed is electronically regulated during the pressing process
4. Pressure Control System
- Electronically controlled by a microprocessor
- Pressing parameters are automatically set via the press control panel
5. Temperature Control
- Digital instruments independently control the platen temperature
6. Pressure Monitoring
- Digital pressure gauges control and display pressure levels
7. Data Recording
- Dual-channel pressure and temperature graphic recorder equipped with sensors and probes
We provide end-to-end service, with customer satisfaction being the enduring pursuit of Yuanfong.
Yuanfong implements proactive and effective marketing strategies to build a global sales and service network. We place great emphasis on the development of an integrated service system, delivering accurate and efficient one-stop solutions at every stage—from engineering design and manufacturing to sales, logistics, installation, commissioning, maintenance, and training support.
Yuanfong’s after-sales service team is professional, highly skilled, experienced, and dedicated, offering prompt and proactive support that has earned widespread customer trust and recognition. Upholding a “customer-first” service philosophy, we are committed to integrity, professionalism, enthusiasm, and efficiency, striving to provide outstanding service to every customer.
